MINI2440 S3C2440 ARM9 board+3.5"+camera+wifi SKU03 128M

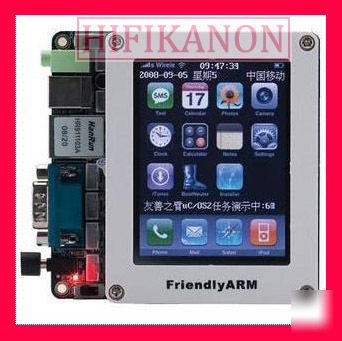

mini2440 Samsung S3C2440 ARM9 Board+3.5"LCD+Camera+WiFi
mini2440 ARM9 Development Board
Linux-ready, hardware/software development kit for Samsung's ARM9-based S3C2440 microprocessor. The 100mm-square Mini2440 board features the workhorse S3C2440 processor clocked to 533MHz, and targets embedded development training applications, industrial control equipment, and consumer electronics devices like PDA devices and GPS navigators.
The MINI2440 appears to be smallest S3C2440 development kit to date. Measuring 3.9 by 3.9 inches (100 x 100mm), the MINI2440 is a four-layer board that clocks the Samsung S3C2440's ARM920T RISC core at 400MHz (dominant frequency) and 533MHz (peak frequency).
The S3C2440 system-on-chip (SoC) primarily targets handheld devices such as smartphones and PDAs. The SoC integrates 16KB each of instruction and data cache, 4KB RAM, a NAND flash boot loader, power management functions, an interrupt controller, and an external memory controller.
The Mini2440 comes standard with 64MB each of SDRAM and NAND flash, expandable via an SD card slot, along with 2MB of NOR flash. The board has camera and LCD interfaces, and with a built-in 3.5-inch QVGA (320x240) TFT TouchScreen LCD .
The Mini2440's complement of PC-style I/O includes Ethernet, USB host and slave ports, and three serial connections. Available options include a WiFi module, and CMOS and USB camera options. The Mini2440 board offers a "stable CPU power source chip and reset system.
* Processor - Samsung S3C2440 (ARM920T core) clocked at up to 533MHz
* Memory - 64MB SDRAM (up to 100MHz)
* Flash - 128MB NAND flash; 2MB NOR flash
* Flash expansion - 1 x SD card interface
* Display - LCD controller with four-wire resistive touchscreen interface; optional 3.5- or 7-inch LCD displays
* Networking - 1 x 10/100 Ethernet RJ-45 interface (DM9000 chip)
* WiFi - optional WiFi module
* USB - 1 x USB Host; 1 x USB Slave (B-type interface)
* Audio - 1 x stereo audio output interface; 1 x mic interface
* Camera - 1 x 20-pin (2.0mm space) camera interface; optional CMOS or USB cameras
* 1 x 10-pin (2.0mm space) JTAG interface
* 1 x PWM control buzzer
* 1 x adjustable resistance, for AD conversion test
* 1 x I2C bus AT24C08 chip, for I2C bus test
* 1 x 34-pin 2.0mm GPIO interface
* 1 x 40-pin 2.0mm system bus interface
* Power - RTC battery; power supply interface
* Clock - internal real-time clock and 12Mhz passive crystal system clock source
* Dimensions - 3.9 x 3.9 inches (100 x 100mm)
* Operating system - Linux 2.6.13; WindowsCE.NET 5.0
The Mini2440 software development kit (SDK) includes the following components, says Hiteg:
* ADS1.2 development environment
* H-JTAG burning and debugging tool
* SJF2440 flash burning tool for Windows
* Jflash-2440 flash burning tool for Linux (source code provided)
* Bmp2t (picture transformer)
* USB driver for Windows XP/2000
* Vivi bootloader for Linux (source code provided)
* Test programs (source code provided)
* WinCE BSP and example project file
The Linux SDK also offers additional Linux development tools and Linux 2.6.13 kernel source code, as well as Qtopia and "embedded browser" source code.
* arm-linux-gcc-3.3.2 used for compiling Qtopia
* arm-linux-gcc-3.4.1 used for compiling kernel
* arm-linux-gcc-2.95.3 used for compiling Vivi
* Mkyaffsimage YAFFS filesystem image maker
* Drivers - DM9000, TFT LCD, audio card, touchscreen, SD card, RTC, expansion serial port, USB camera, USB mouse, keyboard, U-disk
1. MINI2440 S3C2440 ARM9 Development Board (Preload with Linux)
2. NEC 3.5 TFT TouchScreen LCD
8. 1 D-LINK DWL-G132 108M USB WiFi wireless net adaptor module
9. 1 x OV9620 1.3 mega pixels CMOS camera module
EMS fee will be 40 usd if you need.

MINI2440 S3C2440 ARM9 board+3.5
